Water / CO2

The quick & efficient flame knockdown property of Co2 gas makes it ideal for tackling fires involving inflammables liquids like petrol, oil, paints, solvents and industrial gases. It is also suitable for sophisticated machineries. Co2 extinguishes the fire within seconds by dilution of oxygen and chilling effect.

product

FEATURES

  • AFFF Aqueous Film Forming Foam Agent capable of fighting class A, B fire & Water capable of fighting class A fire
  • BIS Approved ( IS 15683 )
  • CE Certified (On Request)
  • High quality pure polyester powder coating
  • Spray nozzle to provide high fire rating
  • Choice of capacity 6 Ltrs. & 9 Ltrs.
PERFORMANCE DATA Download Technical Datasheet
MODEL KFM 6 KFM 9
Capacity (In Ltrs.) 6L 9L
Fire Rating 2A 2A
Average discharge time 22 sec 42 sec
Height (Approx.) 530 mm 575 mm
Diameter (Approx) 150 ± 10 mm 180 ± 10 mm
Filled weight (Approx.) 8 Kg 12 Kg
Empty weight (Approx) 3.1 Kg 4.3 Kg
Operating temperature +5°C to + 55°C +5°C to + 55°C
Working Pressure at 20° C 15 bar 15 bar
Maximum Service Pressure 18 bar 18 bar
Test Pressure 35 bar 35 bar
Approval
Back to Top

Mechanical Foam

Foam is a powerful knockdown agent for spill fires involving inflammable liquids such as petrol, oil, naphtha, paints, alcohols & solvents. This extinguisher forms a thick layer of foam over the burning surface, effectively cutting of atmospheric supply of oxygen to the burning surface thereby smothering the fire and preventing re-ignition. Foam extinguishes fire by giving blanketing effect.

CAUTION : Not for use on Electrical fire

product

FEATURES

  • AFFF Aqueous Film Forming Foam Agent capable of fighting class A, B fire & Water capable of fighting class A fire
  • BIS Approved ( IS 15683 )
  • CE Certified (On Request)
  • High quality pure polyester powder coating
  • Spray nozzle to provide high fire rating
  • Choice of capacity 6 Ltrs. & 9 Ltrs.
PERFORMANCE DATA Download Technical Datasheet
MODEL
Capacity (In Ltrs.) 9 / 50
Jet Range (In Mtrs.) 6 - 7 / 8 - 10
Discharge time (In Sees.) 65 - 90 / 60 - 180
Back to Top

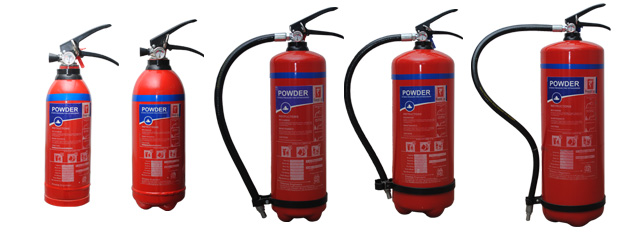

Dry Powder

Dry powder extinguishers are highly effective for B & C class fires, specially for combating three dimensional or running fires involving inflammable liquids like petrol, paints solvents and industrial gases. They can also be used on energised electrical equipments. Powder based extinguisher knocks down fire by beating & displacement of air.

product
PERFORMANCE DATA Download Technical Datasheet
MODEL
Capacity (In Kgs.) 1 / 2 / 5 / 10 / 25 / 50 / 70
Jet Range (In Mtrs.) 2 / 2.5 / 2.5 / 3 / 3
Discharge time (In Sees.) 14 - 16 / 20 - 24 / 25 - 30 / 50 - 60
Back to Top

CO2

The quick & efficient flame knockdown property of Co2 gas makes it ideal for tackling fires involving inflammables liquids like petrol, oil, paints, solvents and industrial gases. It is also suitable for sophisticated machineries. Co2 extinguishes the fire within seconds by dilution of oxygen and chilling effect.

product

FEATURES

  • AFFF Aqueous Film Forming Foam Agent capable of fighting class A, B fire & Water capable of fighting class A fire
  • BIS Approved ( IS 15683 )
  • CE Certified (On Request)
  • High quality pure polyester powder coating
  • Spray nozzle to provide high fire rating
  • Choice of capacity 6 Ltrs. & 9 Ltrs.
PERFORMANCE DATA Download Technical Datasheet
MODEL
Capacity (In Kgs.) 2 / 4.5 / 6.5 / 9 / 22.5
Jet Range (In Mtrs.) 2 / 2.5 / 2.5 / 3 / 3
Discharge time (In Sees.) 14 - 16 / 20 - 24 / 25 - 30 / 50 - 60
Back to Top

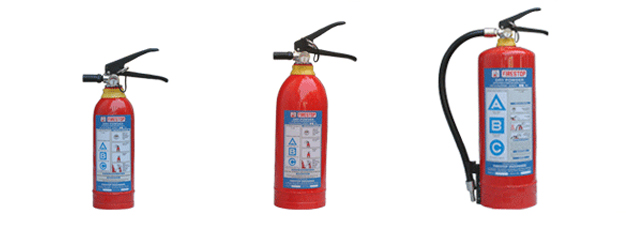

Stored Pressure

This is a premium range of appliances available in A B C powder, pressurised with dry nitrogen gas. The contents are expelled by the release of pressure stored inside the body. The inbuilt pressure gauge indicates its readiness for use. ABC powder is one of the most versatile and highly effective agents suitable to combat fires involving wood, inflammable liquids, gases, and electrical wiring. This extinguisher knocks down fire by beating and displacement of air.

For Class 'A', 'B' & 'C' Fires And Electrical Hazards
product
PERFORMANCE DATA Download Technical Datasheet
MODEL
Capacity (In Kgs.) 1 / 2 / 5 / 10
Jet Range (In Mtrs.) 3 - 4 / 3 - 4 / 4 - 5 / 4 - 5
Discharge time (In Sees.) 6 - 12 / 6 - 12 / 15 - 25 / 15 - 25
